DIS Navigation System
Navigation

Operating Navigation Screen

The navigation system displays various information on the screen.

Zoom In / Zoom Out

Press [navi%20map%20scale%20icon_DH%20EU.jpg] or [navi%20map%20scale%20icon_DH%20EU.jpg] to set the zoom level on the map screen.


,Note
  • You can set the zoom level by directly pressing the zoom bar on the screen.
  • Press [Plus_map_icon.jpg] or [navi%20map%20scale_DH%20KOR.jpg] for over 1 second. The zoom will continuously change.
  • If the zoom range limit is reached, the [Plus_map_icon.jpg] /[navi%20map%20scale_DH%20KOR.jpg] button will be disabled.
  • If you want to set the auto zoom, press [navi_zoom%20auto_RJ_USA_ENG.png].

Map scale

This function sets the zoom level automatically according to the road class.

Press [navi%20zoom%20icon_DH%20USA.png] on the map screen.


Name

Description

navi%20zoom%20icon_DH%20USA.png Scale Fix (inactive - "Auto")

Fix the displayed scale.

navi%20zoom%20auto_DH%20USA.jpg Auto Scale (active - "Auto")

Change the map scale automatically depending on the road class.

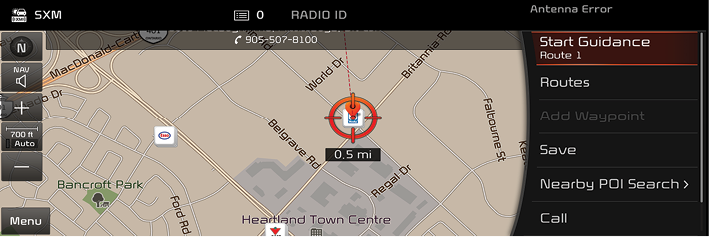

Making a call to POI

After searching for a POI, the POI phone number information can be used to make a call to the POI facility.

  1. Use the various search methods, such as the map scroll function, POI search function, and destination search function to search for a POI.


  1. Press [Call] on the menu screen.
  2. Bluetooth is used to make a call to the POI facility.

,Note

Making a call is not possible if there is no telephone information for a POI or if there is no mobile phone connected through Bluetooth.

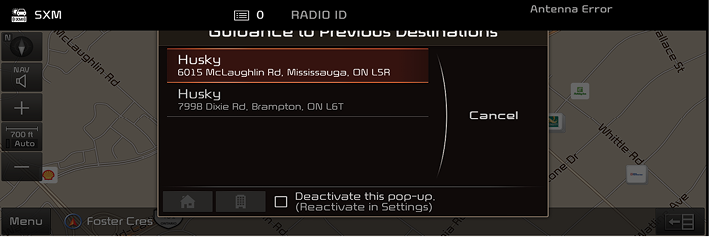

Guidance to Previous Destinations

When starting the navigation, the “Guidance to Previous Destinations” pop-up appears for about 10 seconds. The pop-up is displayed only when the navigation is started without the route planned.

Press one of the list.


,Note

Press [home%20icon_RJ_USA_ENG.png] > [Setup] > [Navigation] > [Display] > [Show Previous Destinations after Navigation Start-Up] to set the Guidance to Previous Destinations.

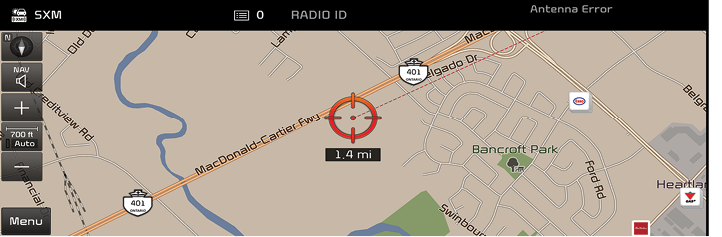

Scrolling map

  1. Press and drag the map area on the screen. The selected point will be centered on the screen and the scroll mark will be displayed. Information about the marked point and straight line distance from the current position will be displayed at the center of the screen.


  1. Press [Menu] > [Start Guidance].

,Note

If a map area on the map screen is pressed, the map will continuously scroll in the corresponding direction until the pressing is released.
